HONDA Click 125I game changer speedometer apparently has some serious issues when water penetrated inside on those rubber cover of set and menu switches.Die to very poor design of them floating on the cover lens. It is not secured. That is where water can go inside the speedometer PCB and create havoc destroying or even burning an area due to short circuits made by water when dried on pcb components act as an acid and oxidize those parts.
Recently, a friend sent me a unit for REPAIR. below, you'll be surprised of what jas happened to his unit diue to the fact that water already enetered and corroded some parts and burnt an area of his unit.

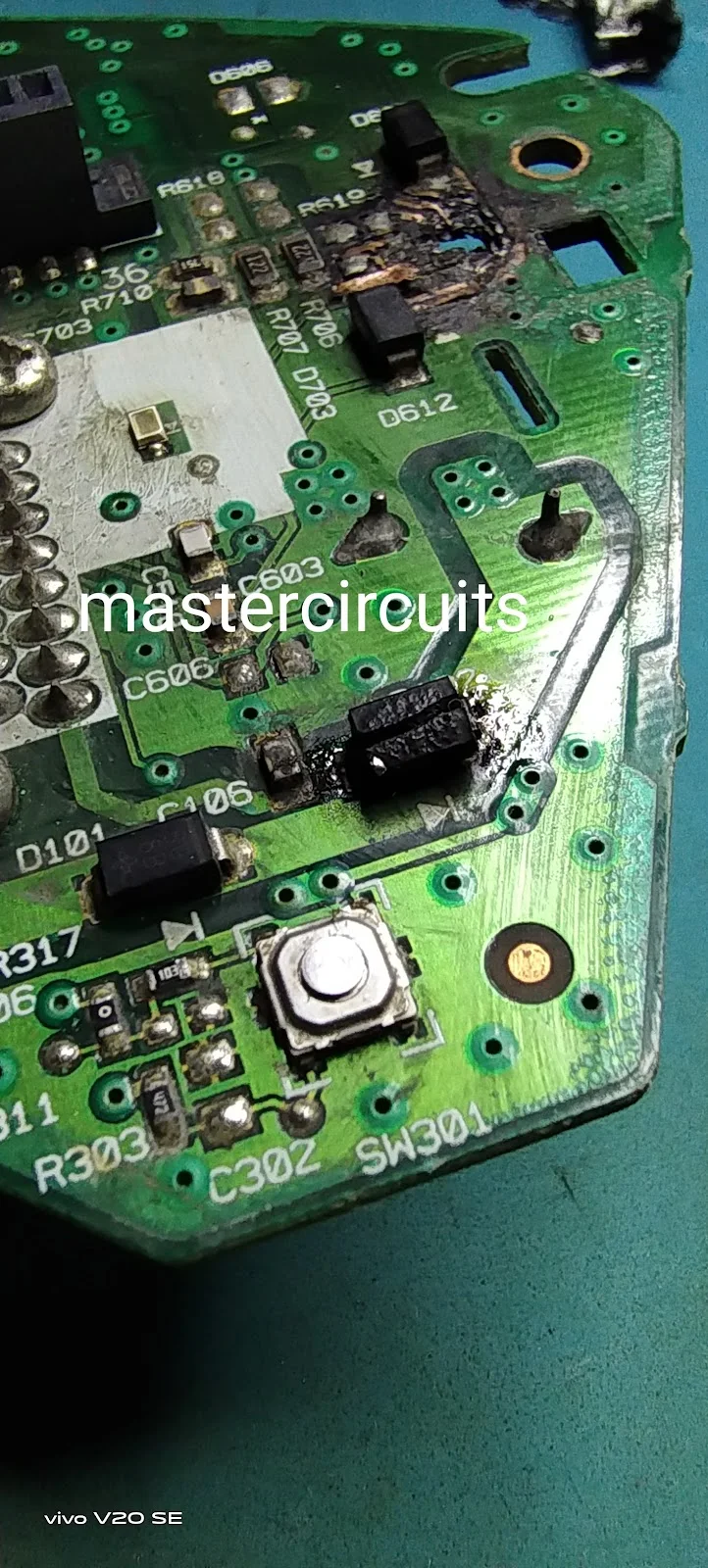

burned pcb that damages the copper foil path and some components.
very visible fried components. Sign there was short circuit on the power rail of this speedometer board.
damage was unlikely to be resolve but with our determination of replacing damage components and tracing the damage connection between each point.
Patience is the key. So many smd resistors was replaced, a bunch of smd chip capacitors and diodes.
item was alive after a while day of repair.
